Genio Hub

Genio Hub

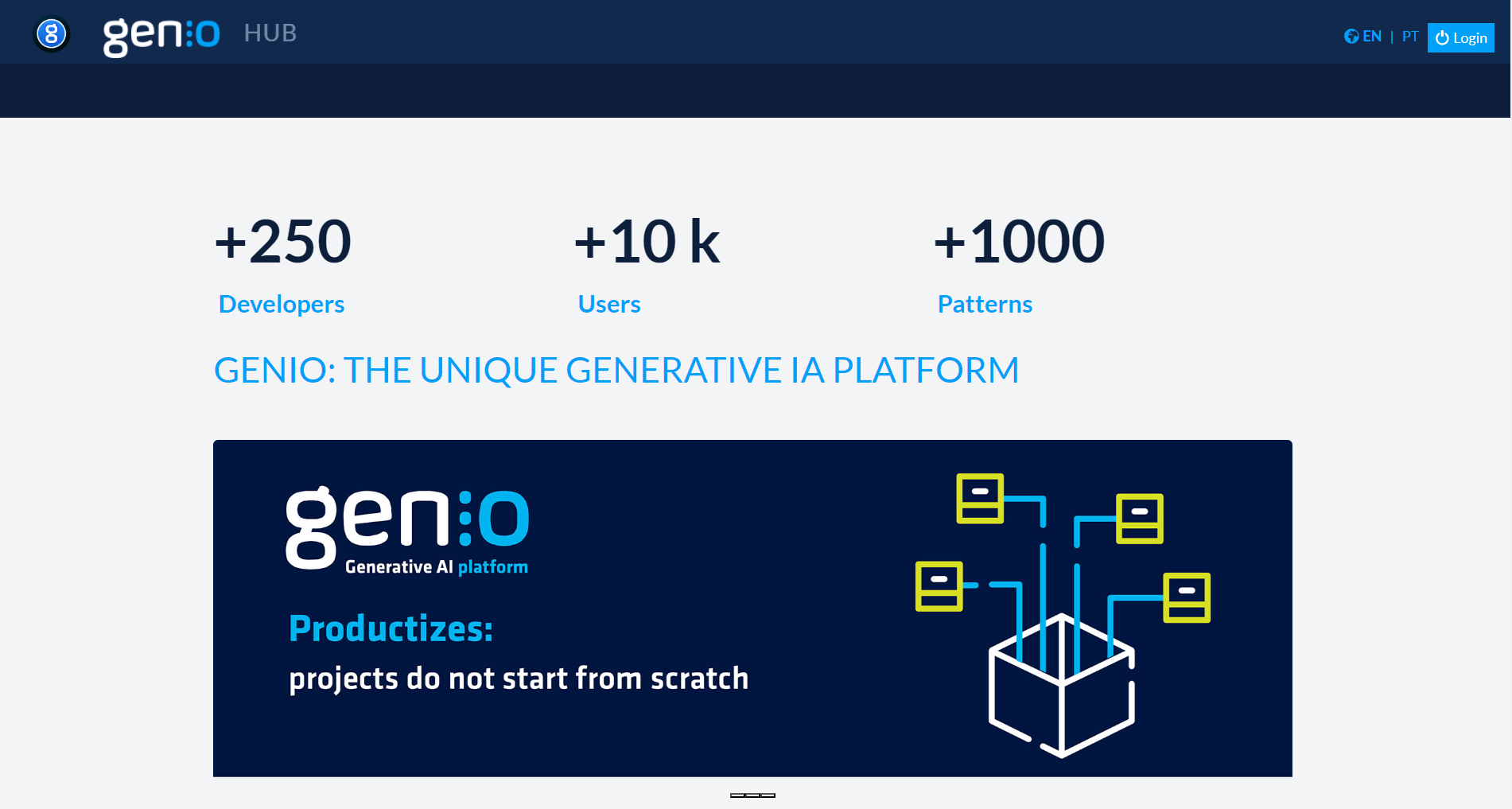

Navigate to GenioHub Portal. Once there, log in using your designated credentials.

NOTE: If you don't have any credentials, please contact support.genio@quidgest.com

geniohub

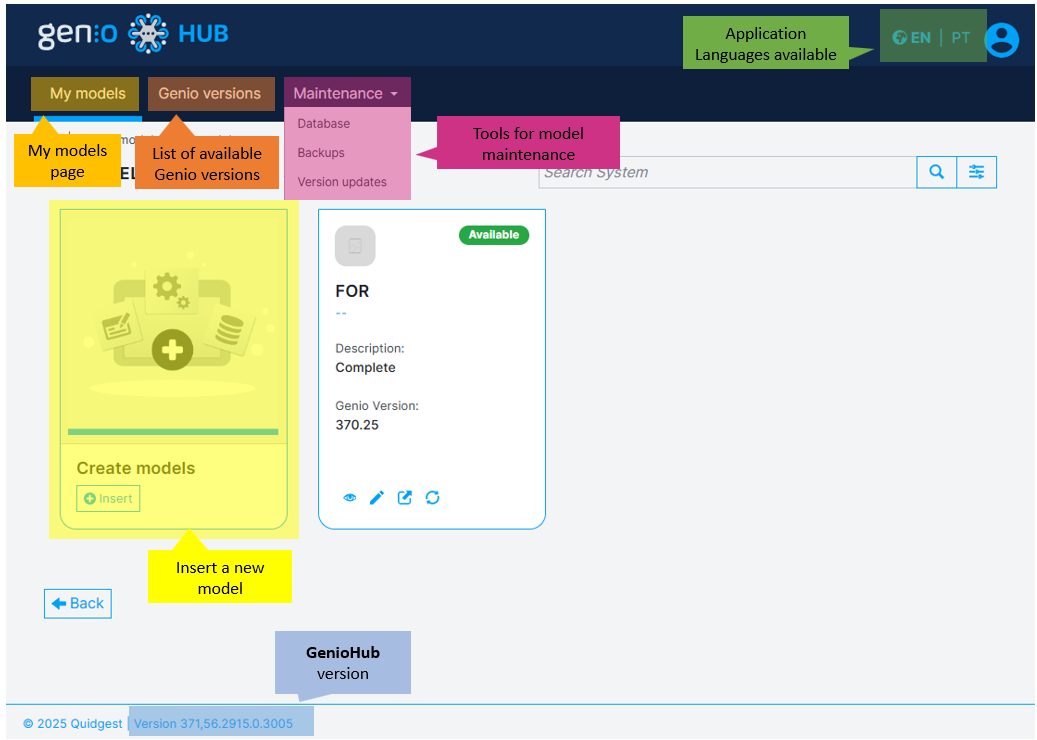

My Models page

This page is displayed by default, and here you may manage your existing Models, or create new ones. To create a new model, simply click on the card labeled “Create models”.

geniohub_dashboard

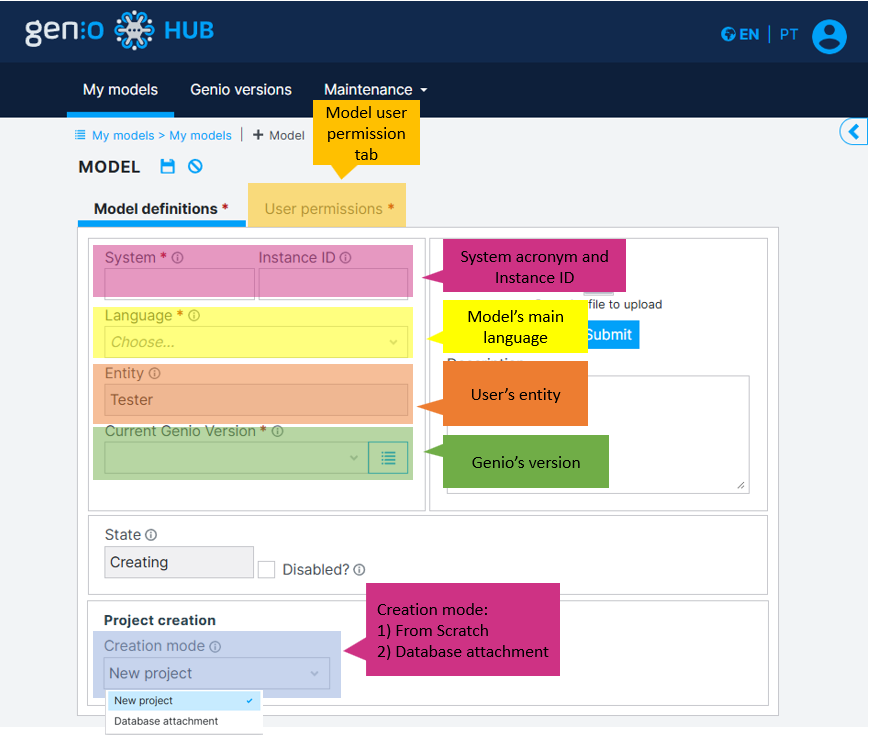

Model creation

  • System: The 3 letter acronym of system identifier. May contain alphanumerical characters, but the first character must be a letter.
  • Instance ID: Not mandatory, but can be used when multiple copies of the same project are needed. This ID is used to identify each instance.
  • Language: Set here the primary language of the application here. UI elements generated by Genio will use the selected language, such as buttons for CRUD actions.
  • Entity: The term 'entity' refers to a collective of users collaborating on the same projects, can either be a single individual or an entire team.
  • Current Genio Version: Choose the Genio version assigned to this model. This version is dynamic and can be upgraded at a later stage if needed.
  • Project Creation - Creation mode: Set how the model will be created, if it will be created from scratch, or by importing an existing database model from another project.
  • State: Project status indicates the current phase or condition of the project. The state can be one of five: “Creating”, “Available”, “Disabled”, “Unavailable” and “Out of Date”.
  • Disabled?: Tick the box to disable an existing model, preserving the project settings even when the entity does not actively use the project.

geniohub_modelcreation

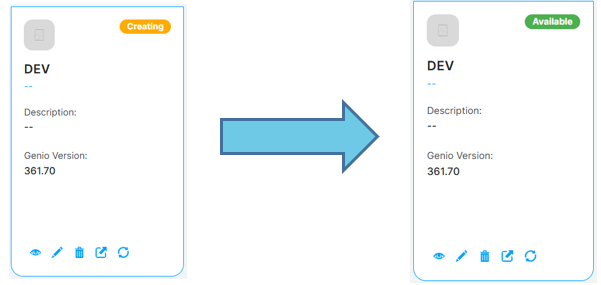

After model creation

Once you saved the details of your new model, you will have a new card on the “My models” page. It will have the status “Creating” as Genio is building the model in the background. After a few seconds, once the process is completed, you will see the status update to “Available”.

geniohub_modelcreation_status

NOTE: Clicking on the card of your newly created model will bring you to the Genio Homepage.
